GS508-120BXA

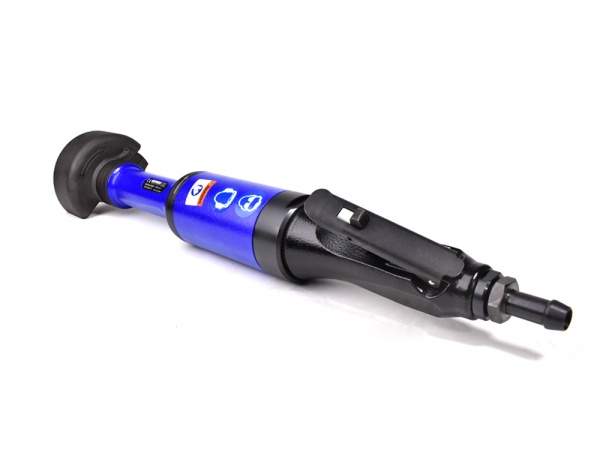

Our straight grinder is designed for the use with conical grinding disk when heavy-duty fabrication is required on steel and castings and for the deburring of welding-, casting-, and ridge-seams. It can also be used with steel brushes for the removal of rust, the descaling of rolled steel and forgings. When grinding with a grinding disk, or when using this tool with brushes, it is necessary to only operate this tool with safety gurards.

The integrated speed regulator keeps the speed nearly constant and also reduces the air consumption.

Applications:

  • For the fabrications on steel, for the deburring of welding-, casting-, and ridge-seams - with grinding disks
  • For the removal of rust, the descalin gof rolled steel and forgings - with steel brushes

Advantages: For industrial applications, optimum power-to-weight ratio, highly durable, robust, efficient, simple operation

Objednací číslo
6061228B
Max. power output 1200 W / 1.61 hp
Speed (no load) 12000 min-1
Weight 2,6 kg / 5.73 lbs
Drive vane motor
Assortment Standard assortment
Start safety lever
Design With safety flange, for conical grinding disks
Rotation right
Air consumption (no load) 0,65 m3/min / 22.95 cfm
Air consumption (loaded) 1,2 m3/min / 42.37 cfm
Max. radial speed 50 m/s / 164 ft/s
I.D. of air inlet hose 13 mm / .51 in
I.D. of grinding wheel 20 mm / .79 in
O.D. of grinding wheel 80 mm / 3.15 in
Max. thickness of grinding wheel 25 mm / .98 in
Air connection thread 3/8" female
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Allen key 2 mm 800443
Allen key 5 mm 800448
Allen key 6 mm 800449
Hose Nozzle 6013772
Optional Accessories
Plug 27SF AK17 SXN 6074950
Plug 27SF AK21SXN 6072227
Nozzle, G3/8", turnable (around the axis) 6022433A
O ring 6072103
Swivel connector G3/8" 816376
