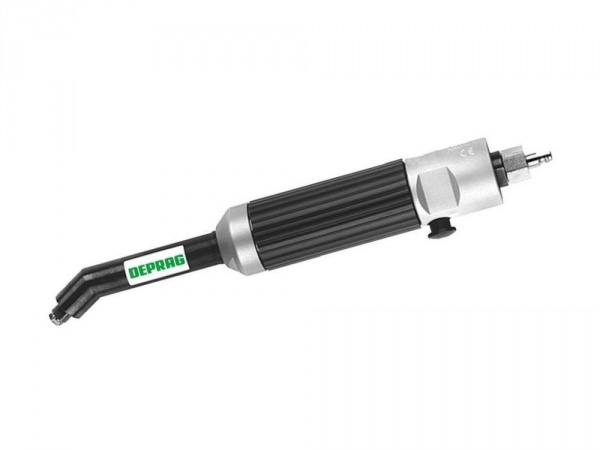

DC020-040SZC

Our small angle drill  (angle head 150°) is designed for the optimum drilling of different materials - for drilling into steel, aluminium etc. - for the construction in the ship building-, aviation and automotive industry, as well as the machine building industry.

With gearing to achieve the optimal operating speed and to achieve the best-possible drilling result.

Objednací číslo
3027201L
Max. power output 200 W / .27 hp
Speed (no load) 4000 min-1
Weight 0,8 kg / 1.76 lbs
Drive vane motor
Assortment Additional Assortment
Start trigger
Rotation right
Air consumption (no load) 0,3 m3/min / 10.6 cfm
I.D. of air inlet hose 6 mm / .24 in
Drilling into steel to 3 mm / .12 in
Drilling into alu to 4,8 mm / .19 in
Air connection thread 1/4" male
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Ring spanner 302554
Collet ø 4,8 mm 302878
Nipple 323213
Spanner 9 mm 800401
Quick release coupling 804250
Optional Accessories
Collet ø 4 mm 3028781
Collet ø 3 mm 3028783
